Diode Lasers
Leading Exporters, Wholesaler and Manufacturers of Diode Laser for Proctology, Photoniccs Cosmetic Gynecology Laser Machine, Photoniccs Dual Wavelength Diode Laser, Photoniccs Triple Wavelength Diode Laser, Photoniccs Veterinary Laser and Soft Tissue Laser Dental Diode from karghar.
| Business Type | Exporter, Supplier |
| Country of Origin | India |
| Laser type | Diode, Semiconductor |
| Wavelength | 980nm |
| Max Power | 15 watts |
| Aiming beam | 635nm, < 5mw |
| Operation Mode | Continuous or pulsed |
| Pulsed Time | 0.05ms~1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22~0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 5.5’’ LCD with touch panel Medical approved |
| Cooling | Silent cooling fan, Multi- channel copper tube electronic cooling |
| Power supply of the laser | DC 24V/8.33A from the separate AC |
| Power supply of AC adapter | Single phase 100~240VA; 50-60HZ, Max 90w |
| AC Adapter | DC 24V/8.33A Medical approved |
| Laser Dimensions | 20cm* 20cm*10cm length*width*height |
| Laser weight | 1.7 kg |
| Laser case dimensions | 19cm × 13.4cm × 9cm |
| Weight of laser with cases | 9kg |
| Environmental conditions during work | From +10 to 240C degree, relative humidity from 30% up to 60% Cass of Medical Device : IIB |
| Laser safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | Ip20b |
| Footswitch Protection Degree | IPX6 |
| Battery Capacity | 3000 mAh |

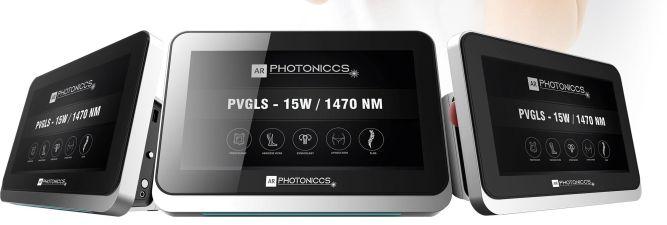

| Business Type | Exporter, Supplier |
| Laser type | Diode, Semiconductor |
| Wavelength | 1470nm |
| 1470nm | 15 watts |
| Aiming beam | 635nm, < 5mw |
| Operation Mode | Continuous or Pulsed |
| Pulsed Time | 0.05ms-1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22-0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1" IPS with touch panel Medical approved |
| Cooling | Internal, air and thermoelectric cooling |
| Power supply of the laser | DC 24V/8.33A from the separate AC |
| Power supply of AC adapter | Single phase 100-240VA; 50-60HZ, Max 90w |
| AC Adapter | DC 24V/8.33A Medical approved |
| Laser Dimensions | 27cm* 11cm*19 cm length*width*height |
| Laser Weight | 2.75kg |
| Laser Case Dimensions | 56cm X 35cm X 23cm |
| Environmental Conditions During Work | From +10 to 24°c Degree, Relative Humidity from 30% Up to 60% |
| Cass of Medical Device | IIB |
| Laser safety Class | 2 |
| Electric Safety Class | I type B |
| Housing Protection Degree | 1p2Ob |
| Footswitch Protection Degree | IPX6 |

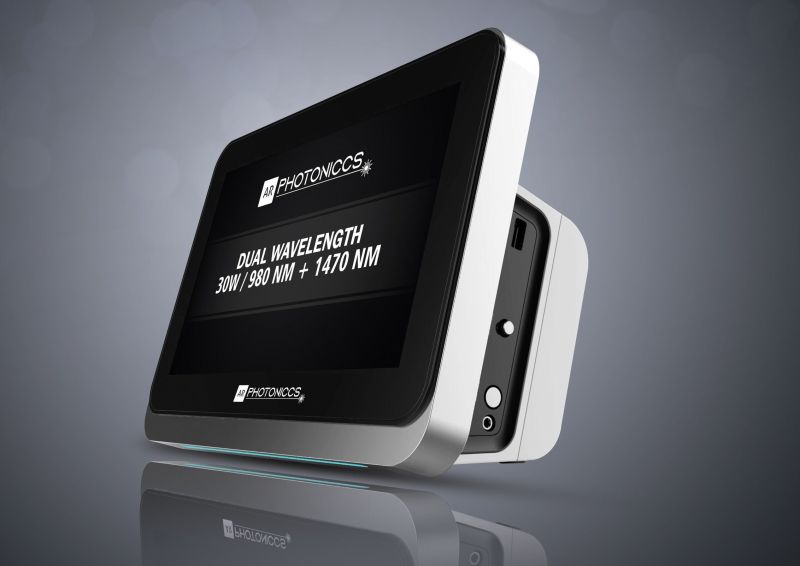

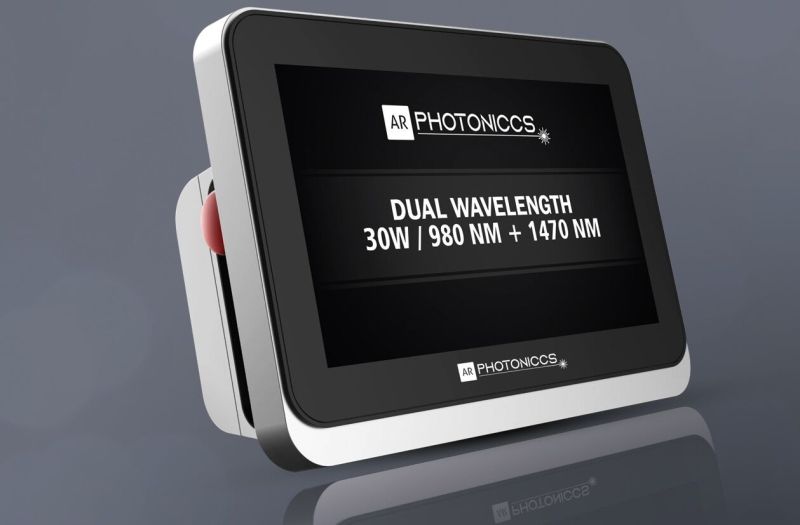

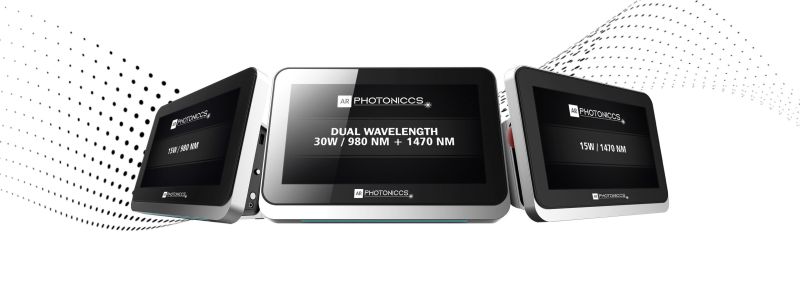

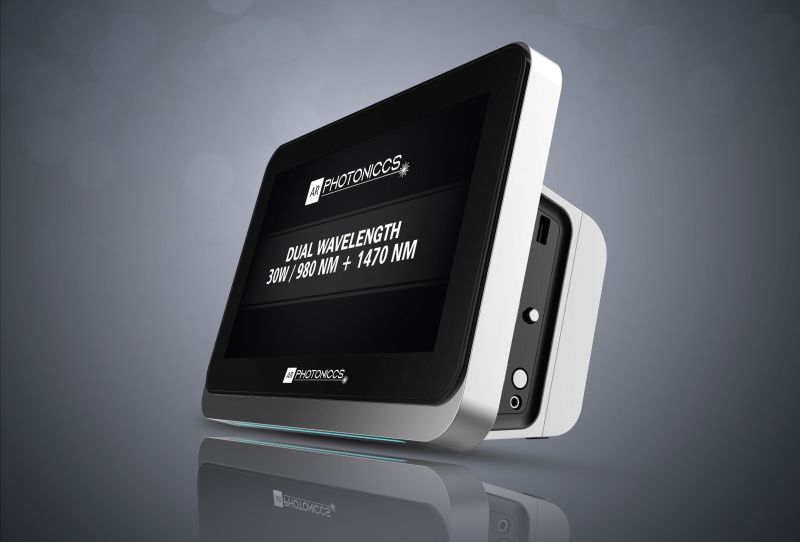

| Business Type | Exporter, Supplier |
| Brand Name | Photoniccs |
| Laser Type | Diode, Semiconductor |
| Wavelength | 980nm+1470nm |
| Max Power | 30 Watts |
| Aiming beam | 635nm/1, 4Mw max or 515nm/2, 5mW max |
| Operation Mode | Continuous or Modulated |
| Pulsed Time | 0.05ms -1000ms |
| Beam Delivery | SMA905 Connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22-0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1" Ips with Touch Panel Medical Approved |
| Cooling | Internal, Air and Thermoelectric Cooling |
| Power Supply of the Laser | DC 24V/8.33A from the separate AC |
| Power supply of AC Adapter | Single phase 100-240VA; 50-60HZ, Max 90w |
| Ac Adapter | DC 24V/8.33A Medical approved |
| Laser Dimensions | 27cm * 24,5cm x 9cm |
| Laser weight | 2.75kg |

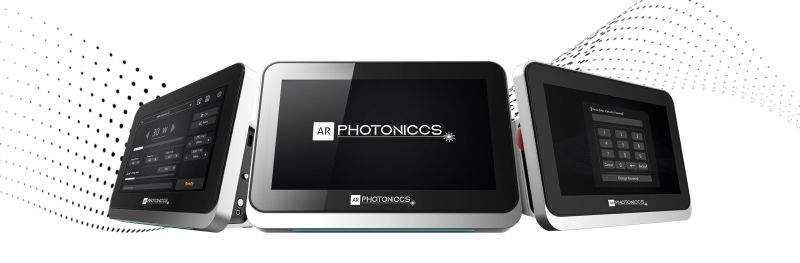

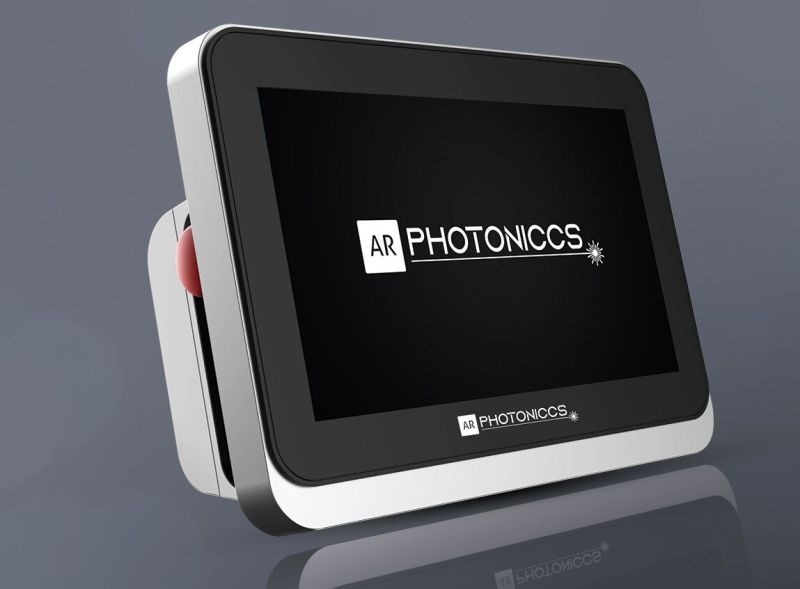

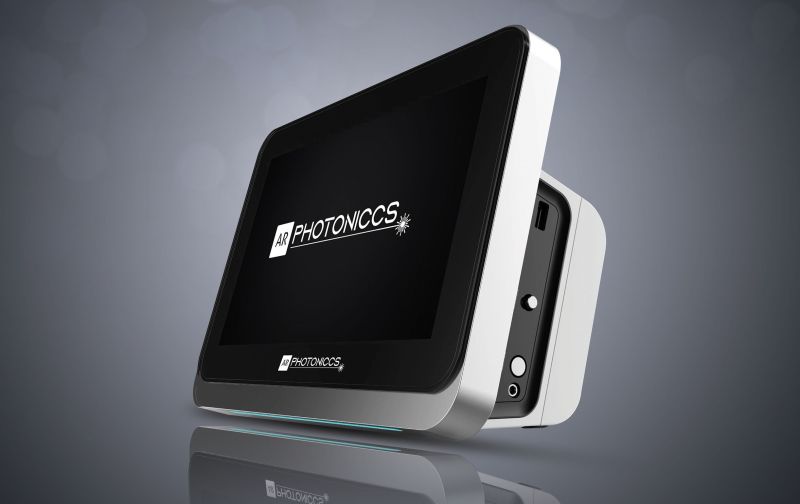

| Business Type | Manufacturer, Supplier |
| Brand Name | Photoniccs |
| Laser type | Diode, Semiconductor |
| Wavelength | 980nm+1470nm+500mw/635nm |
| Max Power | 30 watts |
| Aiming beam | 635nm/1, 4Mw max or 515nm/2, 5mW max |
| Operation Mode | Continuous or Modulated |
| Pulsed Time | 0.05ms -1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatible | Optic fibers having a core from 200um to 1000um, NA=0.22-0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |
| Display | 10.1" IPS with touch panel Medical approved |
| Cooling | Internal, air and thermoelectric cooling |
| Power supply of the laser | DC 24V/8.33A from the separate AC |
| Power supply of AC adapter | Single phase 100-240VA; 50-60HZ, Max 90w |
| AC Adapter | DC 24V/8.33A Medical approved |
| Laser Dimensions | 27cm * 24,5cm x 9cm |
| Laser weight | 2.75kg |
| Laser case dimensions | 53cm x 38cm x 23cm |
| Weight of laser with cases | 9kg |
| Environmental conditions during work | From +10 to 24°C degree, relative humidity from 30% up to 60% |
| Cass of Medical Device | IIB |
| Laser safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | 1p2Ob |
| Footswitch Protection Degree | IPX6 |
| Business Type | Manufacturer, Supplier |
| Laser Type | ARPhotoniccs Diode Lasers |
| Wavelength | 98nm,15w810nm+12w980nm and 200mw650+9w810+92915=9w980 |
| Maximum Power | 10w/15w/25w , 30w, 27.2w |
| Emission Mode | CW/Signle and Repeat Pulse 1Hz-20Khz |
| IP Degree of Protection | Footswitch (Waterproof):IPX8 |
| Aiming Beam | 650nm,Power<5mW |
| Start | Finger Switch With Electronic Access Key |
| Power Supply | 100V-240V at 2.0A |
| Display | True Color Touch Screen 7 inches ,600*1024 |
| Dimensions | 160(W)*180(L)*235(H)mm |
| Weight | 2.1kg |
| Business Type | Exporter, Supplier |
| Wave Length | 980nm, 1470nm, dual wavelength (980+1470),1940nm |
| Power | Various range of power available: 15W, 30W,6W |
| Safety of fibre | High-quality German fibres in fused and glue technology |
| Laser Module | Micro-optical Integrated Laser Diodes |
| Operating Modes | Continuous Wave(CW)/Pulsed |
| Display | 5-inch HD display |
| Control Software | RTOS |
| Fiber Connection | SMA905(Direct Connect of Medical Fiber : >=200μm) |
| Aiming Beam | 650nm<2mW, adjustable density |
| Weight | <= 2KG |
| Battery Capacity | 3000mAh |
| Cooling | Silent cooling fan + Multi-channel copper tube Electronic cooling: |
AR Photoniccs is the industry leader when it comes to the efficient and portable surgical laser diodes. AR Photoniccs comes with a reputation of providing a long-lasting and high-quality product of European standards. The equipment comes with high precision and advanced technology support from best suppliers across the globe.
Why the AR Photoniccs Laser Diode?
- INTRODUCTION TO AR PHOTONICCS LASER - Sleek and convenient suitcase to carry all the accessories along wherever you go
- LARGE TOUCH-SCREEN LCD MULTILINGUAL DISPLAY - Large screen to accommodate all the parameters of the chosen procedure without having to scroll in any chosen language
- SECURITY - Secure Functionalities: Device programmed to detect any faults in the apparatus, pinpoint the user to the actual fault, and provide the means to exit the situation without mishaps
- CUSTOMIZED PROGRAMMES - Inbuilt pre-programmed settings along with the flexibility to customize for unique circumstances
- LOW OPERATING COST - Easily available accessories in bulk at low cost, thus reducing the operating costs by a huge margin
- PATIENT DATA STORAGE - Vast database to store data of more than 2000 patients with the user-friendly procedure to store and retrieve the same
Applications of the AR Photoniccs
AR Photonoccs laser diode. The best and the most lightweight surgical laser diode to enter the global medical device scene, the AR Photonoccs Smart M laser diode uses cutting edge technology to perform various medical procedures such as proctological , varicose vein , cosmetic gynaecological ,Lipolysis, ENT, PLDD and so on to obtain the best results in the least amount of time WITH MINIMAL INVASIVE PROCEDURES Using cutting edge laser technology, the AR Photonoccs laser diode provides results with least side effects and almost no pain in the post-operative.
Quality Assurance by
AR Photoniccs
- Assured Quality at Reasonable Price
- Comprehensive Warranty of 2 years
- Quick troubleshooting
- Rapid and excellent support for surgeons in best possible manner
IMPORTANT: AR Phptoniccs DOES NOT charge the customers for calibration of unit. It is an online process conducted directly from the Headquarters and doesn’t require physical visit to the site.
CALIBRATION PROCESSES
AR PHOTONICCS
- Calibration is a common method of annual inspection to ensure that the equipment provides accurate readings to the doctors/surgeons, therefore ensuring effective treatment.
- While the AR Photoniccs equipment doesn’t strictly require calibration, it is definitely a recommended feature of all the AR Photoniccs Equipment.
- Keeping the same in mind, all the AR Photoniccs equipment is pre-programmed to periodically remind the users of the International Rules and Regulations. The doctor or the surgeon may opt to go for the automatic calibration or stop the reminders.
Application of Dental Laser
Bloodless soft tissue surger | Excellent in EndodonticLaser treatmen | Periodontal treatment | LLLT / Biostimulation | Teeth whitening
Advantages of Laser Technology
- Minimally Invasive, No Bleeding, No Swelling, No anesthesia
- Less or No Pain
- No Suturing
- Less drug intervention
- More Comfortable Surgical Procedures, Better Patient Complaience
- Minimal Postoperative Discomfort
- Faster Healing
- Efficient teeth Whiting, with No or Minimun sensitivity
Meets the following standard
- Hardware: IEC 60601-1:2005+A1:2012
- IEC 60601-1-2:2014
- IEC 60601-2-22:2012
- IEC 60825-1:2014
- Software: IEC 62304:2015
- Biological evaluation: ISO 10993-1:2018
- Battery test: IEC 62133-2:2017
