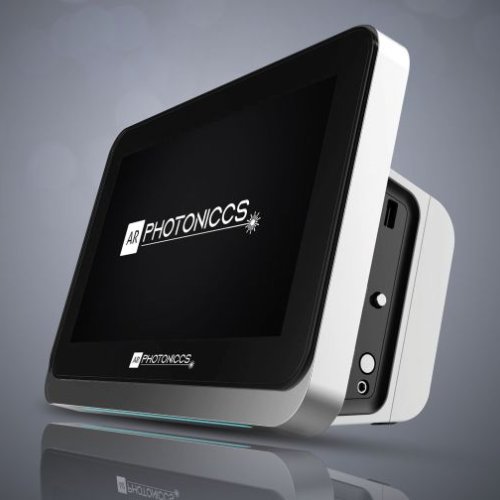

Photoniccs Triple Wavelength Diode Laser

Link Copied
Business Type Manufacturer, Supplier
Brand Name Photoniccs
Laser type Diode, Semiconductor
Wavelength 980nm+1470nm+500mw/635nm
Click to view more

Product Details

Max Power
30 watts
Aiming beam
635nm/1, 4Mw max or 515nm/2, 5mW max
Operation Mode
Continuous or Modulated
Pulsed Time
0.05ms -1000ms
Beam Delivery
SMA905 connector
Optic Fiber Compatible
Optic fibers having a core from 200um to 1000um, NA=0.22-0.48
Beam Emission Initiation
Footswitch
Controller
Microprocessor
Display
10.1" IPS with touch panel Medical approved
Cooling
Internal, air and thermoelectric cooling
Power supply of the laser
DC 24V/8.33A from the separate AC
Power supply of AC adapter
Single phase 100-240VA; 50-60HZ, Max 90w
AC Adapter
DC 24V/8.33A Medical approved
Laser Dimensions
27cm * 24,5cm x 9cm
Laser weight
2.75kg
Laser case dimensions
53cm x 38cm x 23cm
Weight of laser with cases
9kg
Environmental conditions during work
From +10 to 24°C degree, relative humidity from 30% up to 60%
Cass of Medical Device
IIB
Laser safety Class
4
Electric Safety Class
I type B
Housing Protection Degree
1p2Ob
Footswitch Protection Degree
IPX6
